Rotary Double Inverted Pendulum
Take the classic inverted pendulum challenge to the next level
Electromechanical Control
The Rotary Double Inverted Pendulum module is ideal to introduce intermediate and advanced control concepts, taking the classic single inverted pendulum challenge to the next level of complexity. You can use it to demonstrate real-world control challenges related, for example, to takeoff stabilization of a multi-stage rocket. The Rotary Double Inverted Pendulum module attaches to the Rotary Servo Base Unit.
Gallery
Product Details

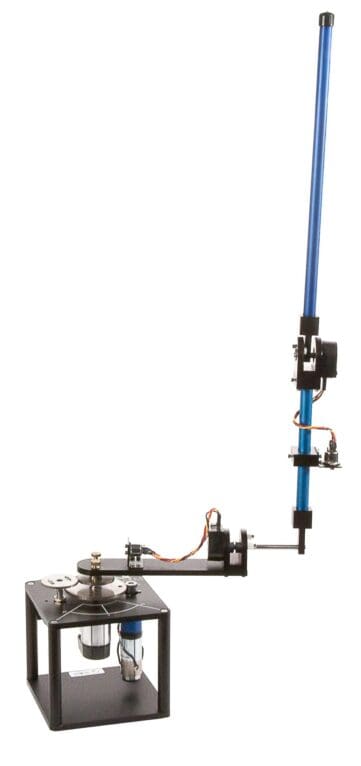

The Double Inverted Pendulum module is composed of a rotary arm that attaches to the Rotary Servo Base Unit, a short 7-inch bottom blue rod, an encoder hinge, and the top 12-inch blue rod. The balance control computes a voltage based on the angle measurements from the encoders. This control voltage signal is amplified and applied to the Servo motor. The rotary arm moves accordingly to balance the two links and the process repeats itself.
- Double pendulum comprised of a 7-inch aluminum link connected to a 12-inch link
- Double Inverted Pendulum module easily attaches to the Rotary Servo Base Unit
- High resolution encoders sense rotary arm and pendulum link angles
| Rotary arm length (pivot to tip) | 21.59 cm |
| Rotary arm mass | 0.2570 kg |
| Short pendulum mass (with T-fitting) | 0.097 kg |
| Short pendulum length (pivot to tip) | 20.0 cm |
| Medium pendulum mass (with T-fitting) | 0.127 kg |
| Medium pendulum length (pivot to tip) | 33.65 cm |
| Pendulum encoder resolution (in quadrature) | 4096 counts/rev |
Modeling Topics
- Lagrange derivation
- State-space representation
- Linearization
Control Topics
- Linear-quadratic regulator
The following additional components are required to complete your workstation, and are sold separately:
For Simulink
- QUARC® add-on for MATLAB®/Simulink®
- Rotary Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- Quanser Q8-USB
- Quanser QPIDe
For LabVIEW
- Quanser Rapid Control Prototyping (Q-RCP) Toolkit® add-on for NI LabVIEW™
- Rotary Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- NI CompactRIO with two Quanser Q1-cRIO modules
- NI myRIO with Quanser Terminal Board
- Quanser Q8-USB
- Quanser QPIDe
Related Products
Control Systems & Dynamics
Electromechanical Control
Rotary Servo Base Unit
Foundational modular control experiment
The Rotary Servo Base Unit is the fundamental element of the Quanser Rotary Control family. It is ideally suited to...
Electromechanical Control
QUBE – Servo 2
Versatile teaching platform for controls and mechatronics
The Quanser QUBE™-Servo 2 is a fully integrated, modular servomotor lab experiment designed for teaching mechatronics and control concepts at...
Control Systems & Dynamics
Electromechanical Control
Rotary Inverted Pendulum
A classic modeling and control systems experiment
The Rotary Inverted Pendulum module attaches to the Rotary Servo Base Unit, expanding the mechatronics and controls topics that can be...
Electromechanical Control
Rotary Flexible Link
Control and vibration analysis of flexible links
The Rotary Flexible Link module is designed to help students perform flexible link control experiments. The module is designed to...
Electromechanical Control
Rotary Flexible Joint
Modeling flexible joints in robotic arms
The Rotary Flexible Joint module is ideal for modeling a flexible joint on a robot when mounted on the Rotary...
Control Systems & Dynamics
Electromechanical Control
Software
Virtual Experiments
QLabs Virtual Rotary Servo
Virtual platform for distance and blended undergraduate control systems courses
QLabs Virtual Rotary Servo is a fully instrumented, dynamically accurate digital twin of a classic Rotary Servo Base Unit system....
Electromechanical Control

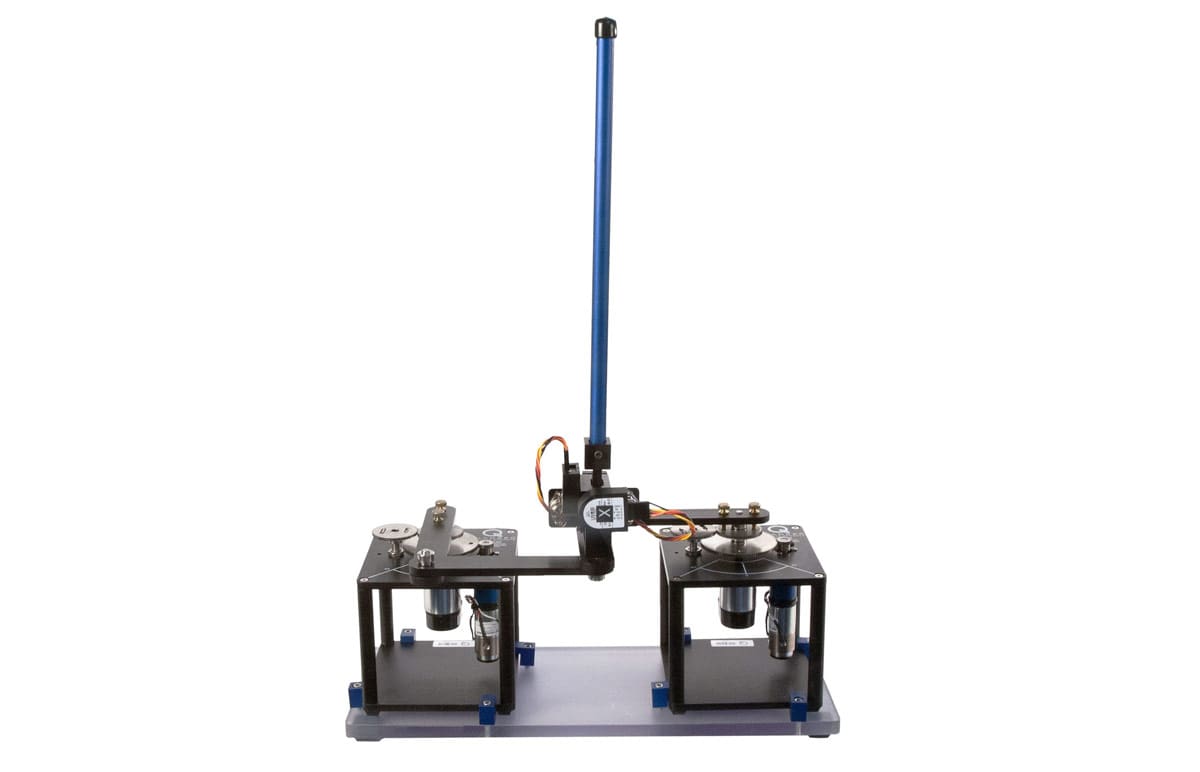

2 DOF Inverted Pendulum/Gantry
Introduce advanced principles of robotics
The 2 DOF Inverted Pendulum/Gantry module is ideal to introduce more advanced principles of robotics. You can use it to...
Electromechanical Control

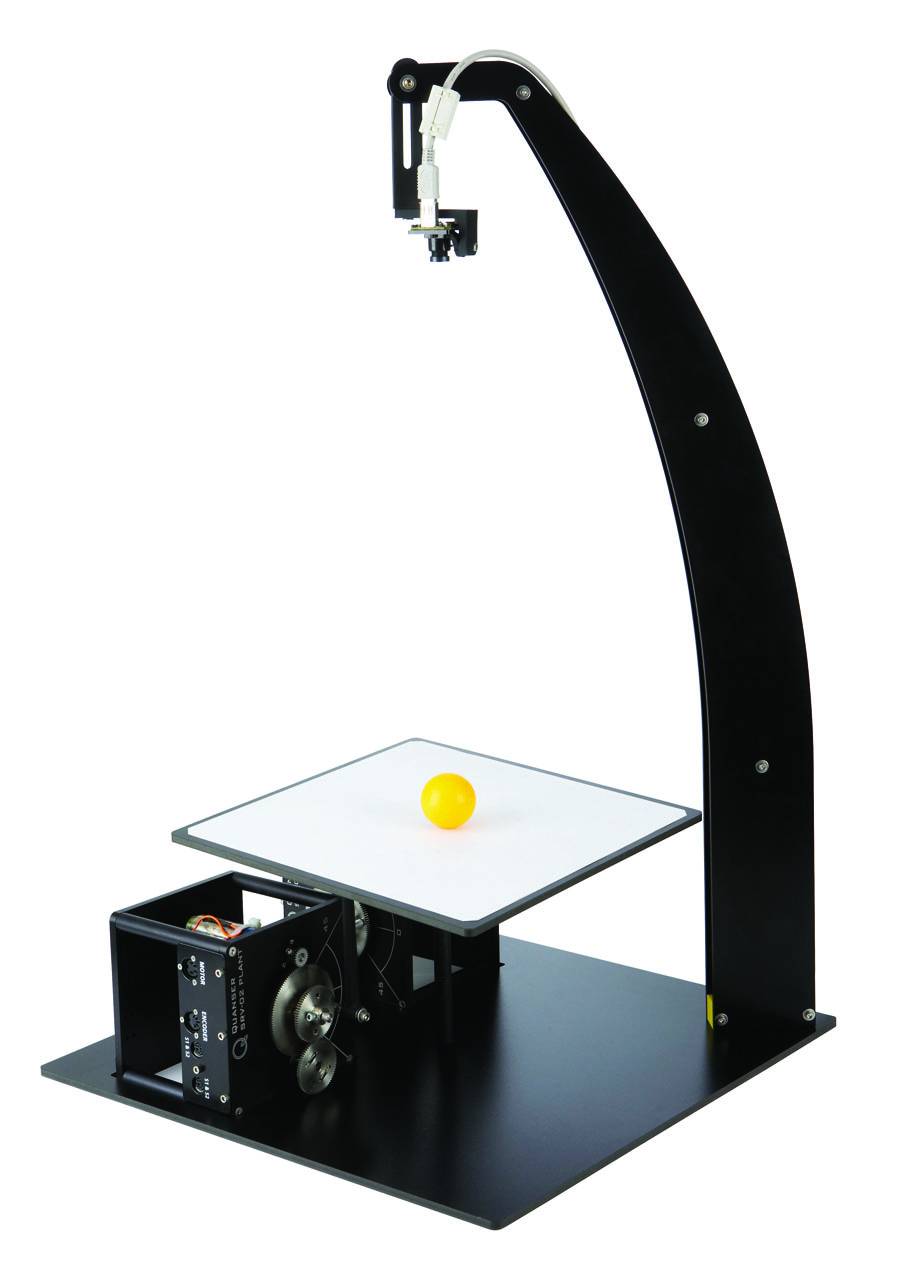

2 DOF Ball Balancer
Introduce vision-based control concepts using the servo family
The 2 DOF Ball Balancer module is a vision-based control experiment designed to teach intermediate to advanced control concepts. You...
Electromechanical Control
Manipulator Robotics
2 DOF Robot
Introduce fundamental principles of robotics
The 2 DOF Robot module is ideal to introduce students to the fundamental and intermediate principles of robotics. You can...
Control Systems & Dynamics
Electromechanical Control
Ball and Beam
Introduce unstable closed loop system control concepts
The Ball and Beam module is ideal to introduce various control concepts related to unstable closed-loop systems. You can use...
Electromechanical Control

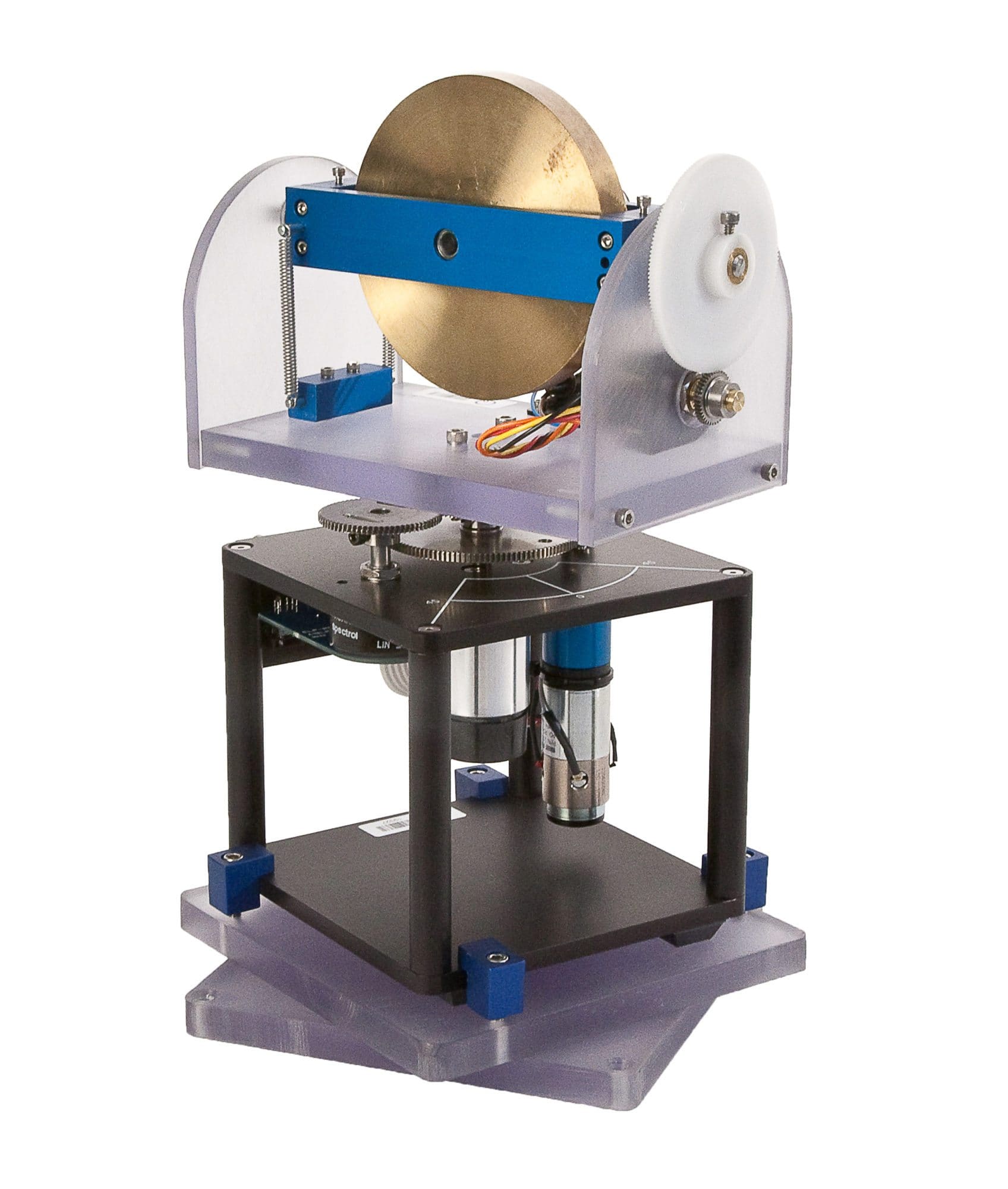

Gyro/Stable Platform
Introduce rotational dynamics concepts
The Gyro/Stable Platform module is ideal to introduce rotational dynamics principles. You can use it to demonstrate real-world control challenges...
Electromechanical Control

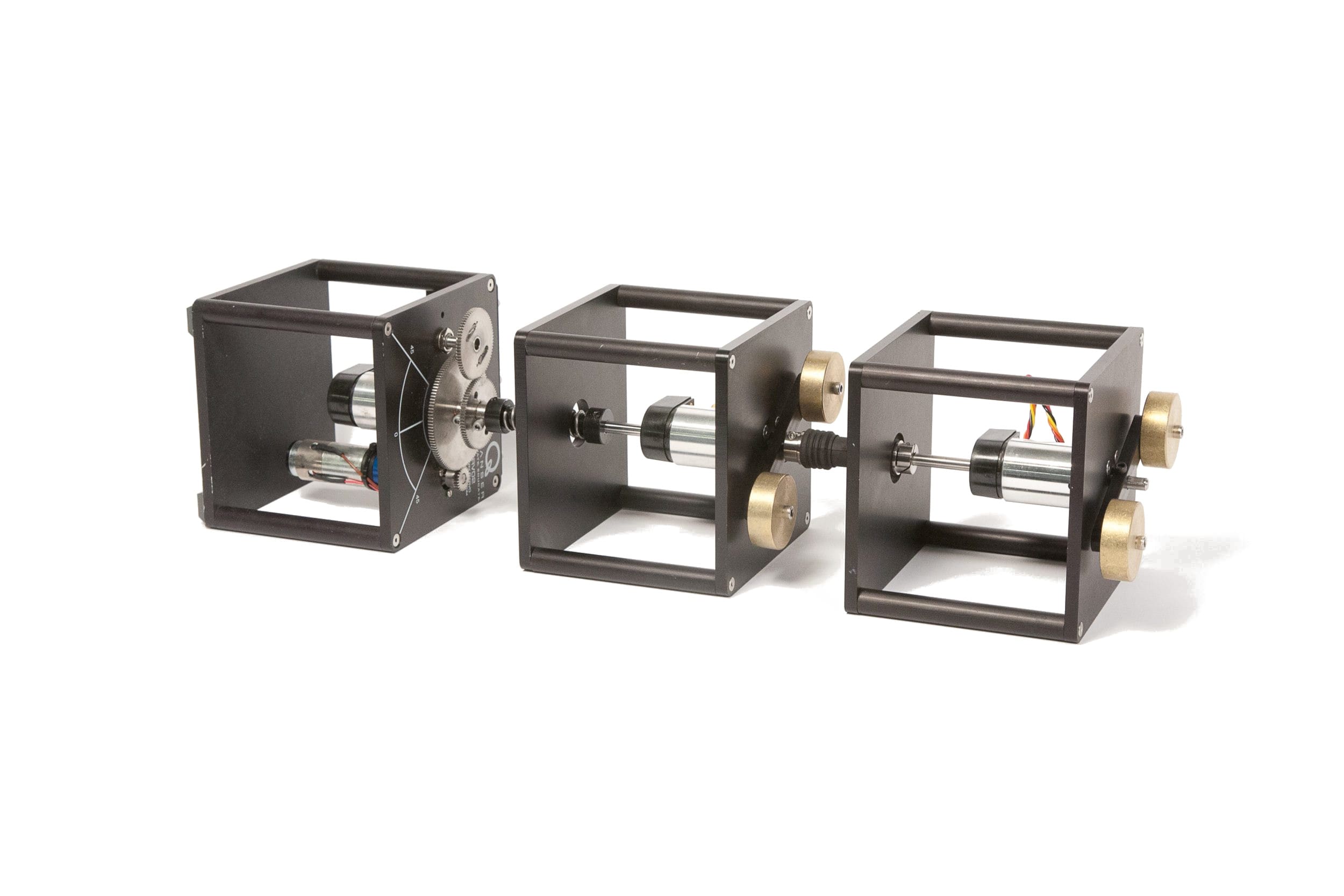

Multi-DOF Torsion
