QNET 2.0 VTOL Board
This product is no longer available.
The QNET 2.0 Vertical Take-off and Landing (VTOL) Board is ideally suited to teach and demonstrate the fundamentals of flight dynamics and vertical take-off and landing flight control. Developed exclusively for NI ELVIS platform and LabVIEW™ software, the system can easily be configured to control the flight of the trainer using a variety of control methods.
Gallery
Product Details

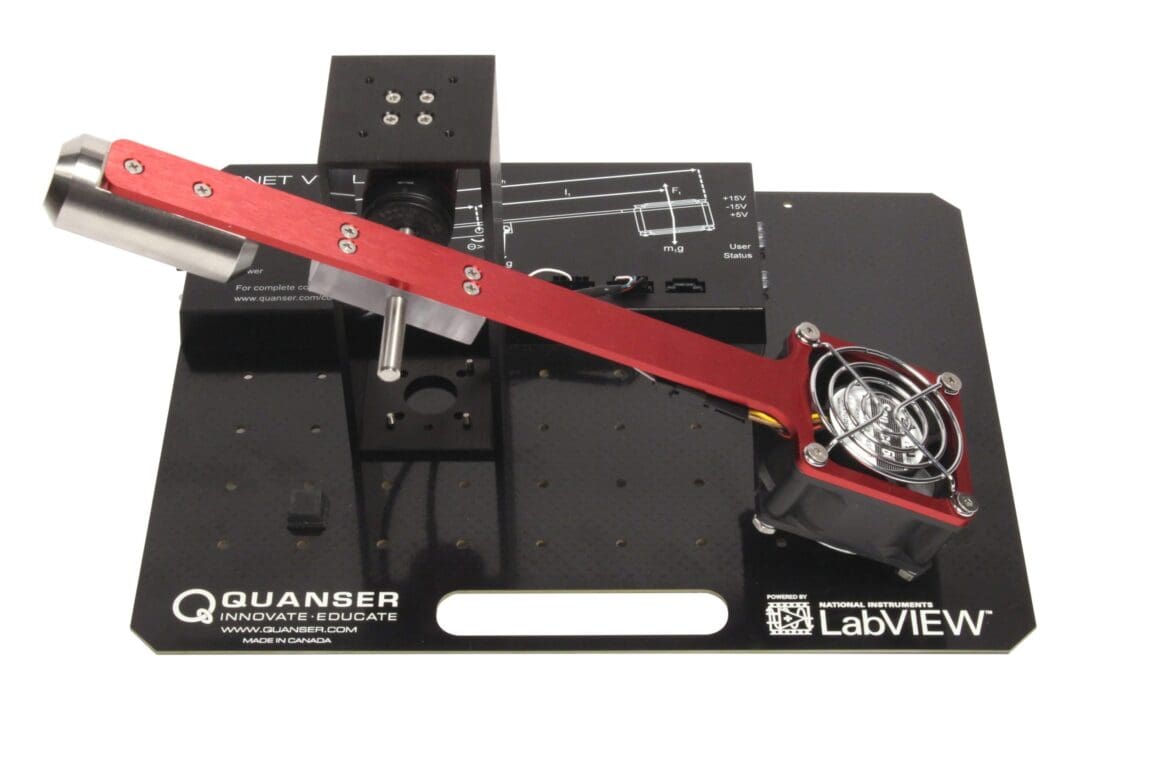

The QNET 2.0 VTOL Board consists of a high air flow DC fan with a safety guard, attached to a solid aluminum arm. An adjustable counterweight is attached on the other end of the arm. This allows the position of the weight to be changed, which in turn affects the dynamics of the system. The arm assembly pivots about a single-ended optical encoder shaft. The encoder measures the angular position of the arm, i.e. the VTOL pitch position.
- High-quality rugged propeller assembly
- High air flow fan with safety guard
- High-resolution encoder
- Built-in amplifier
- Protective cover to shield the circuitry
| Length from pivot to center of counterweight | 72.5 mm |
| Length from pivot to center of fan | 155 mm |
| Counterwight mass | 258 g |
| Pivot encoder line count | 512 lines/rev |
| Pivot encoder line count in quadrature | 2048 lines/rev |
| Encoder resolution (in quadrature) | 0.176 deg/count |
| Amplifier type | PWM |
| Amplifier peak current | 2.5 A |
| Amplifier continuous current | 0.5 A |
| Amplifier output voltage | ± 24 V with 42% duty cycle limit (± 10 V) |
| Fan rated voltage | 24 V |
| Fan rated speed | 11000 rpm |
- Experimental modeling
- Identifying parameters experimentally
- Model validation
- PID control
- Current control
- Pitch control
- Cascade control
- Actuator dynamics
The following additional components are required to complete your workstation, and are sold separately:
For LabVIEW
- NI ELVIS II+
Related Products
Quanser AERO
This product is no longer available.
3 DOF Hover
Flight dynamics and control of vertical lift-off vehicles

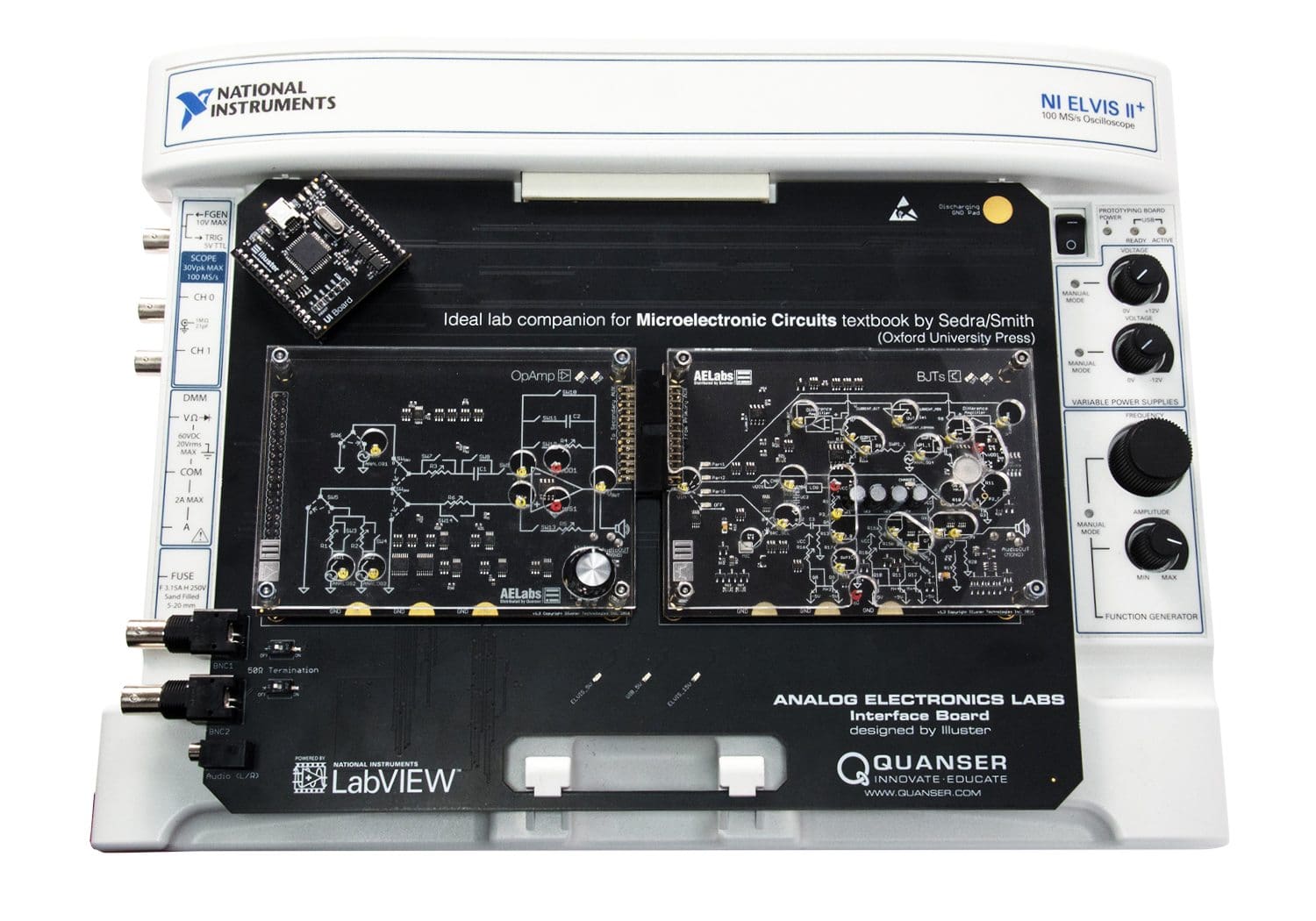

Analog Electronics Labs (for NI ELVIS II+)
Bring Excitement and Relevance to Analog Circuit Design

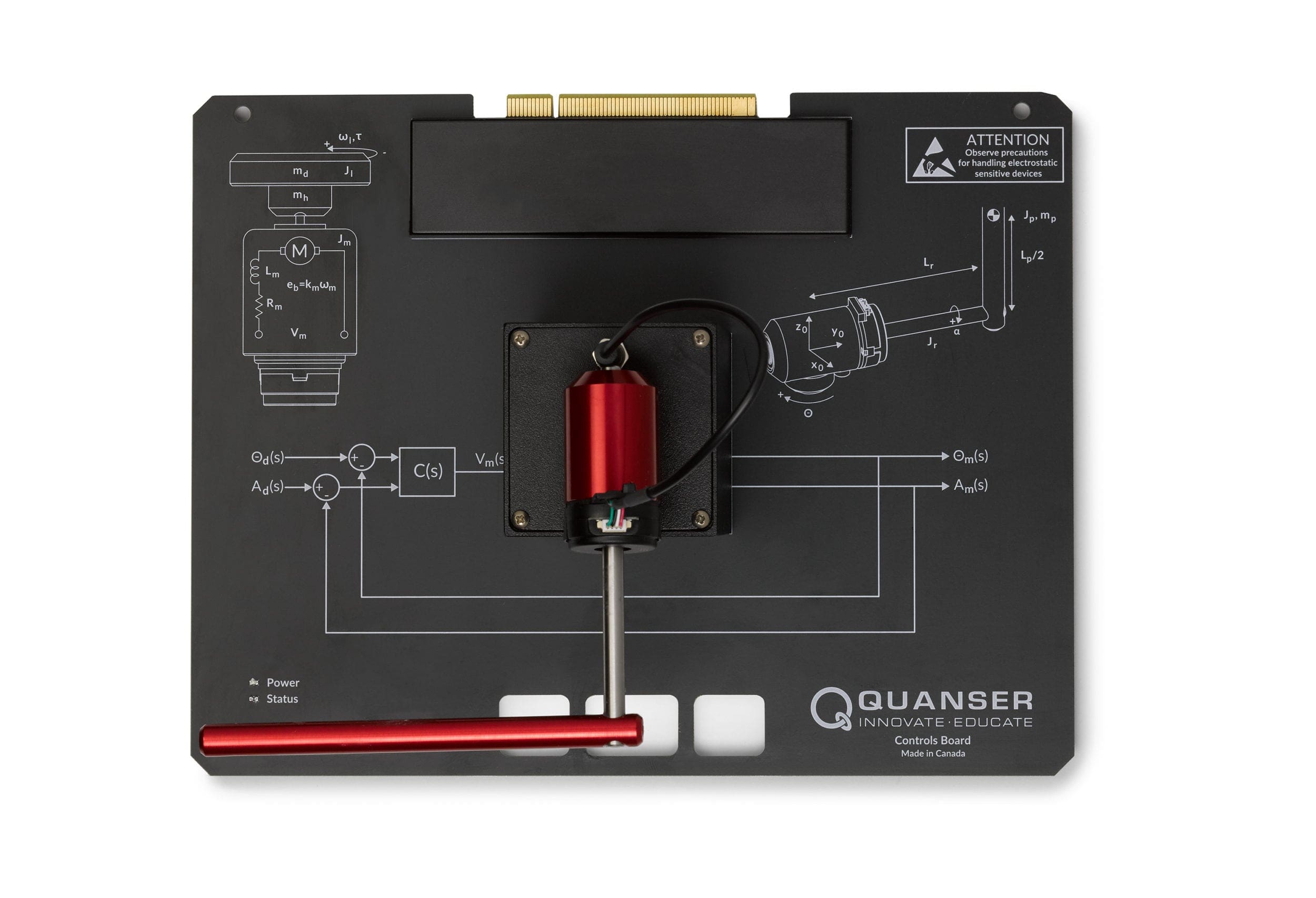

Quanser Controls Board
Investigate introductory and advanced controls

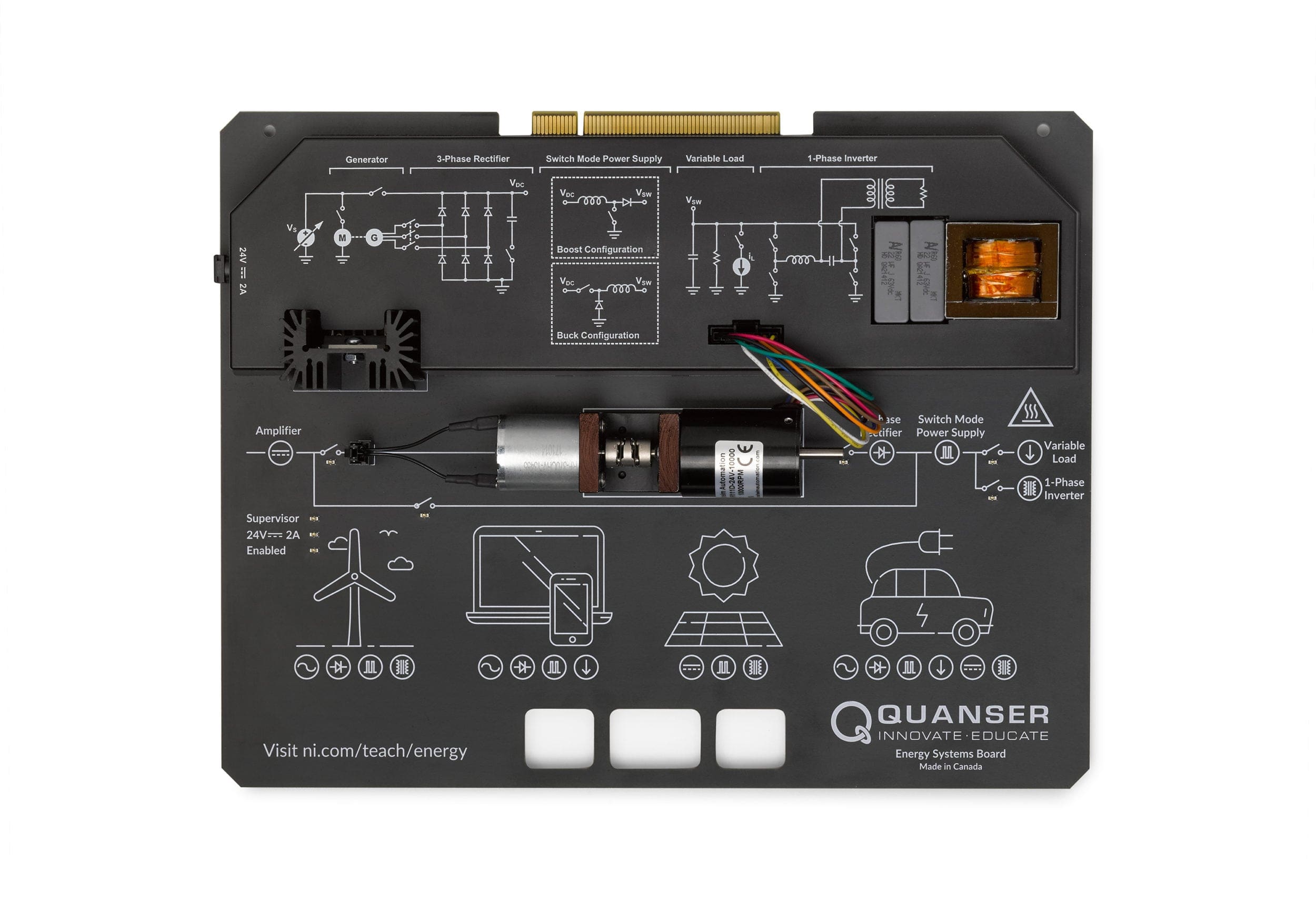

Quanser Energy Systems Board
Prepare students for energy systems engineering applications

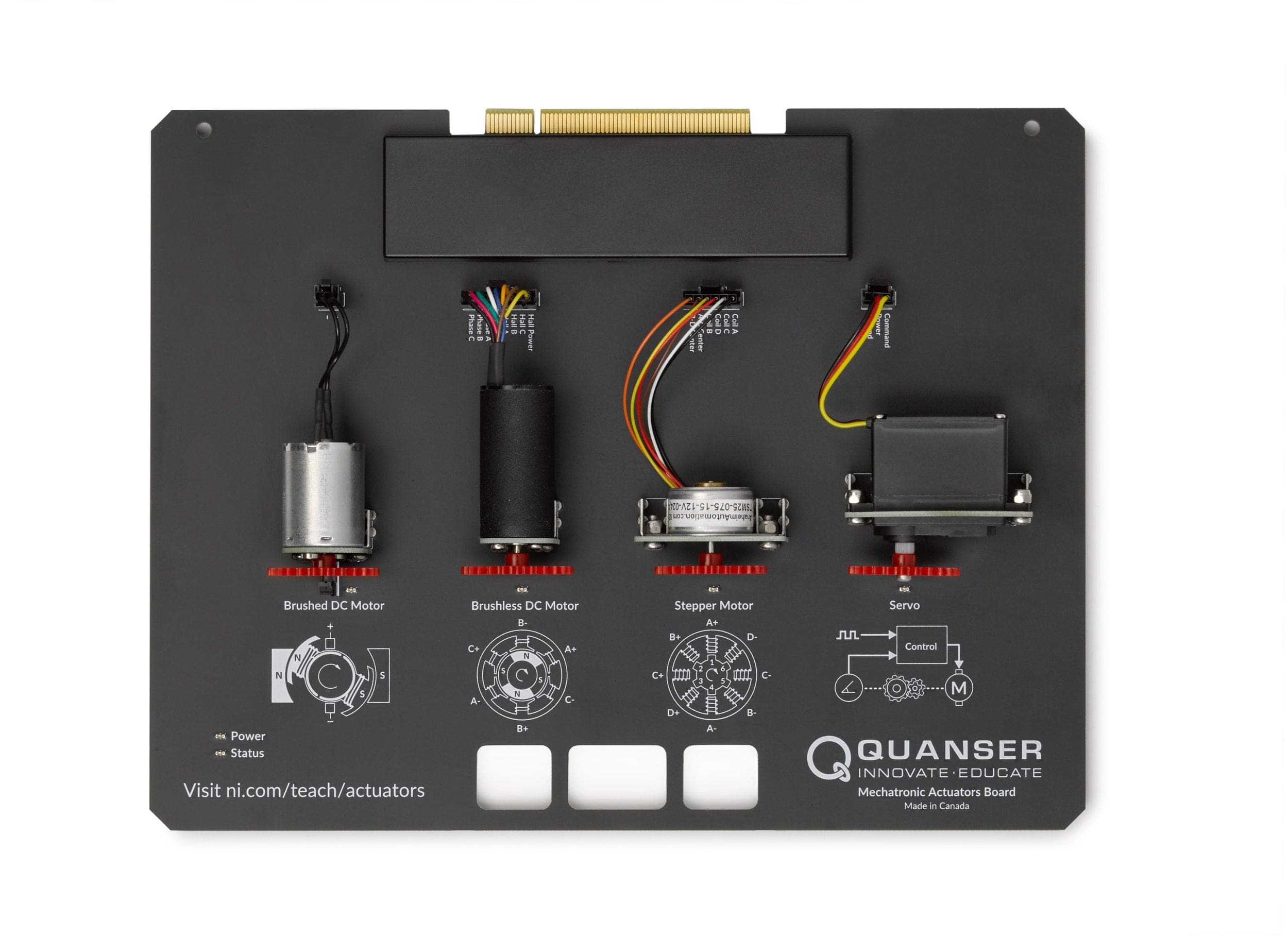

Quanser Mechatronic Actuators Board
Introducing students to actuators and their applications

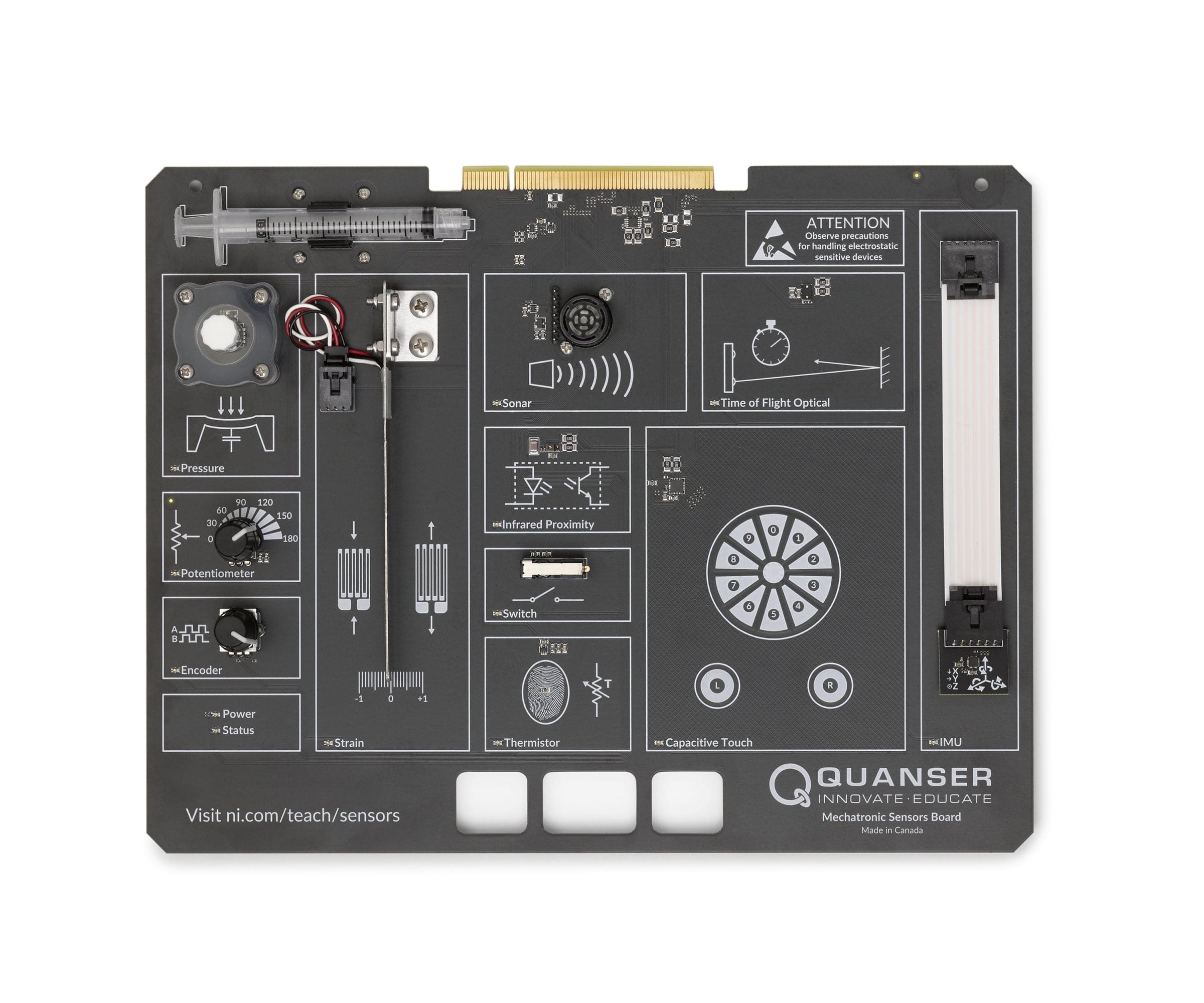

Quanser Mechatronic Sensors Board
