2 DOF Helicopter

This product is no longer available.

The 2 DOF Helicopter experiment provides an economical test bed to understand and develop control laws for vehicles with dynamics representative of a tethered rigid body helicopter, spacecraft or underwater vehicle.

Learn More

Gallery

Documents

Info Sheet

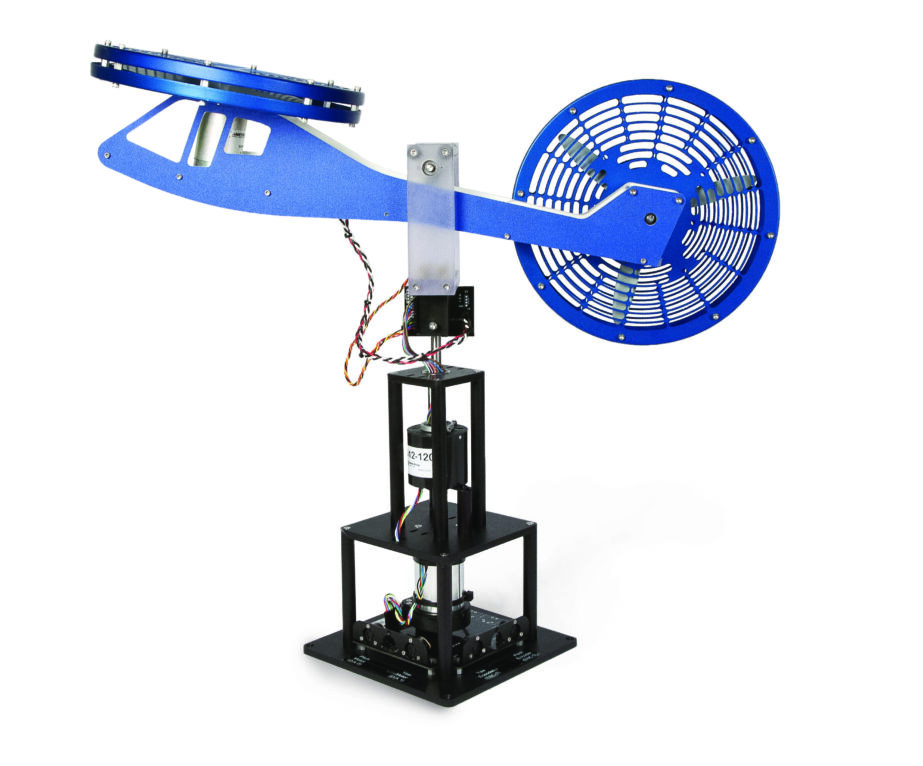

The 2 DOF Helicopter emulates a helicopter configuration with a main rotor and anti-torque tail rotor. The front propeller controls the pitch axis – rotating the center of the body about the horizontal. The back propeller controls the yaw axis – the angle about the vertical base. Both axes are measured using high-resolution encoders. The slip ring mechanism on the vertical axis allows the body to freely rotate about the yaw angle, by eliminating the need for any wires to connect the motors and encoders to the base.

Two degrees of freedom
Propellers are driven by high-quality MICROMO and Pittman DC motors
High-resolution optical encoders
Slip ring allows infinite motion about the vertical and yaw axis

Device mass	3.46 kg
Device height (ground to top of base)	45 cm
Helicopter body mass	1.39 kg
Helicopter body length	48 cm
Base dimensions ( W × L)	17.5 cm x 17.5 cm
Pitch encoder resolution (in quadrature)	4096 counts/rev
Yaw/travel encoder resolution (in quadrature)	8192 counts/rev
Pitch angle range	75 (± 37.5 deg)
Yaw angle range	360 deg
Pitch force thrust constant	0.22 N/V¹
Yaw pitch thrust constant	0.43 N/V¹
Propeller diameter	20.3 cm
Propeller pitch	15.2 cm
Pitch/front motor resistance	0.83 Ω
Pitch/front motor – current-torque constant	0.0182 Nm/A
Yaw/back motor resistance	1.60 Ω
Yaw/back motor – current-torque constant	0.0109 Nm/A

Derivation of simple dynamic model
State space representation
State feedback control with feed-forward and integral anti-windup
LQR control design
Control parameters tuning
