QDrone 2
Quanser innovation unleashed in the autonomous vehicle research space

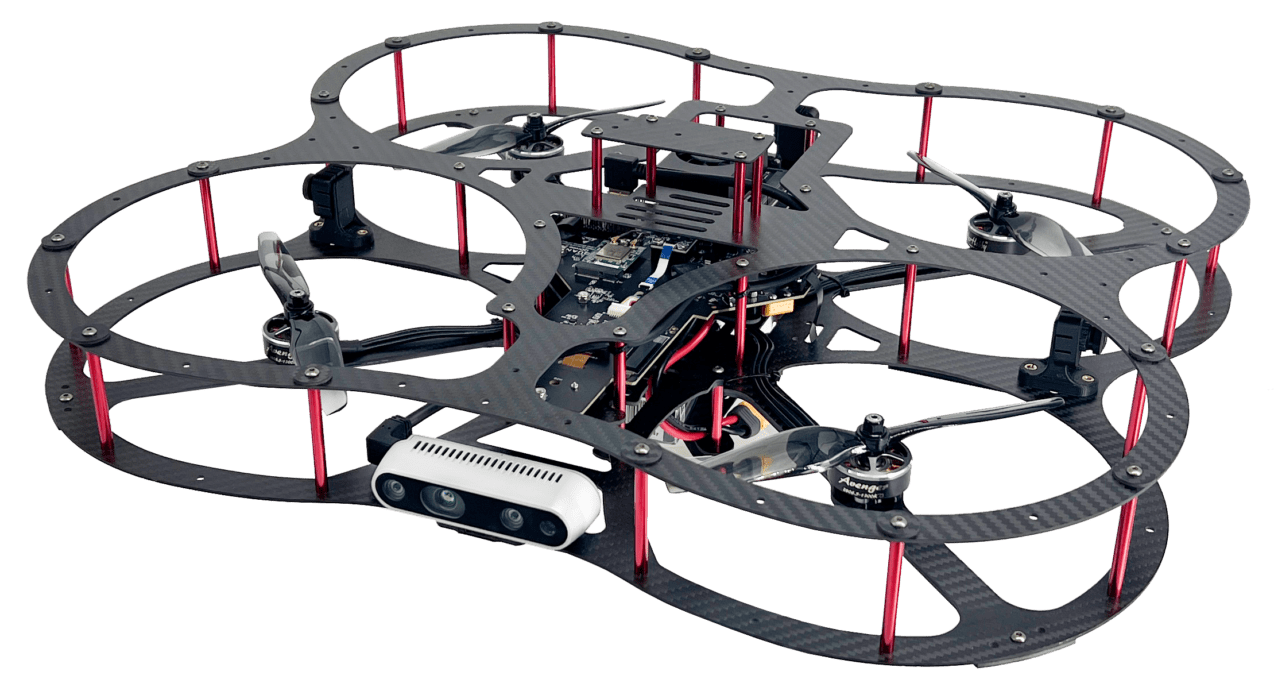

The Quanser QDrone 2 autonomous air vehicle is a midsized quadrotor equipped with a powerful on-board NVIDIA Jetson Xavier NX system-on-module (SOM), multiple high resolution cameras and built-in WiFi. This open-architecture research-grade drone is tuned to accelerate your innovation in multi-agent, swarm, artificial intelligence, machine learning, and vision-based applications.
Gallery
Product Details

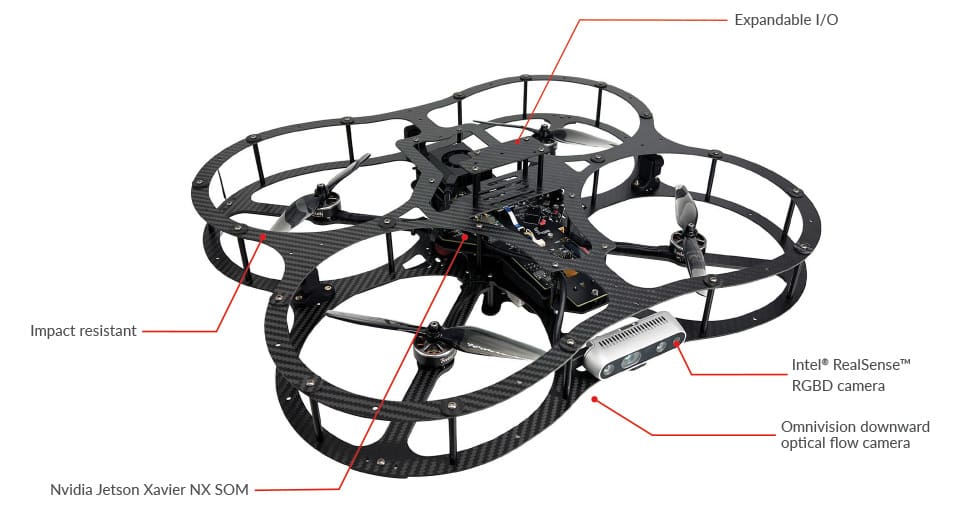

The optimized and robust carbon fiber frame makes the QDrone 2 highly maneuverable and capable of withstanding high-impact applications with little down time required for repairs between flights. The powerful on-board processor and multiple accelerated high-resolution cameras enable novel on-board video processing, as well as streaming for real-time monitoring.
Supported Software and APIs
|
| Dimensions | 50 x 50 x 15 cm |
| Weight (with batteries) | ~1500 g |
| Max Payload | ~300 g |
| Power | 4S 14.8V LiPo (3700mAh) with XT60 connector |
| Flight time | 7-8 minutes for hover per battery charge |
| Onboard Computer | NVIDIA Jetson Xavier NX SOM (powered by a 6-Core NVIDIA Carmel ARM v8.2 64-Bit processor) |
| 384-core NVIDIA Volta GPU with 48 Tensor Cores | |
| 8 GB 128-bit LPDDR4x RAM | |
| Expandable I/O | PWM (2x) |
| UART (2x) | |
| SPI (2x SS pins ) | |
| I²(2x) | |
| ADC (1x) | |
| Encoder input (2x) | |
| CPU GPIO (6x) | |
| Intel® RealSense™ ((D435) | Depth sensing: (3 metre range) |
| RGB (1920X1080) @ 30 FPS) | |
| Omnivision OV9281 | Grayscale (1280×800 @ 120 FPS or 640×480 @ 180 FPS) |
| Sony IMX219 | 3x RGB CSI 160 deg FOV wide angle lenses Cameras providing side and back view |
| 21 FPS to 120 FPS | |
| On board sensors | 2x 6-DOF IMU (gyroscope and accelerometer), 1x Optical Flow sensor, 1x ToF height sensor |
| Connectivity | WiFi 802.11a/b/g/n/ac 867Mbps with dual antennas 1x Micro HDMI port for external monitor support |
Research Studio
The Autonomous Vehicles Research Studio comes with everything you need to jumpstart your research.
Vehicles
- QDrone 2
- QBot Platform (Optional)
Control Ground Station
- High-performance computer:
Intel® Core i7
NVIDIA RTX Graphics card
32 GB DDR4 RAM
- 3 monitors
- USB flight controller joystick
- High performance router
Studio Equipment
- Natural Point Optitrack Flex 13
- Battery chargers
- Protective net
- Protective floor tiles
- Ground camera
Related Products
Autonomous Vehicles Research Studio
Jump-start Your Autonomous Vehicles Research
QLabs Virtual QCar
High fidelity digital twin in an interactive driving world
QCar
Sensor-rich autonomous vehicle for self-driving applications
Self-Driving Car Studio
A multi-disciplinary turnkey laboratory that can accelerate research, diversify teaching, and engage students from recruitment to graduation.

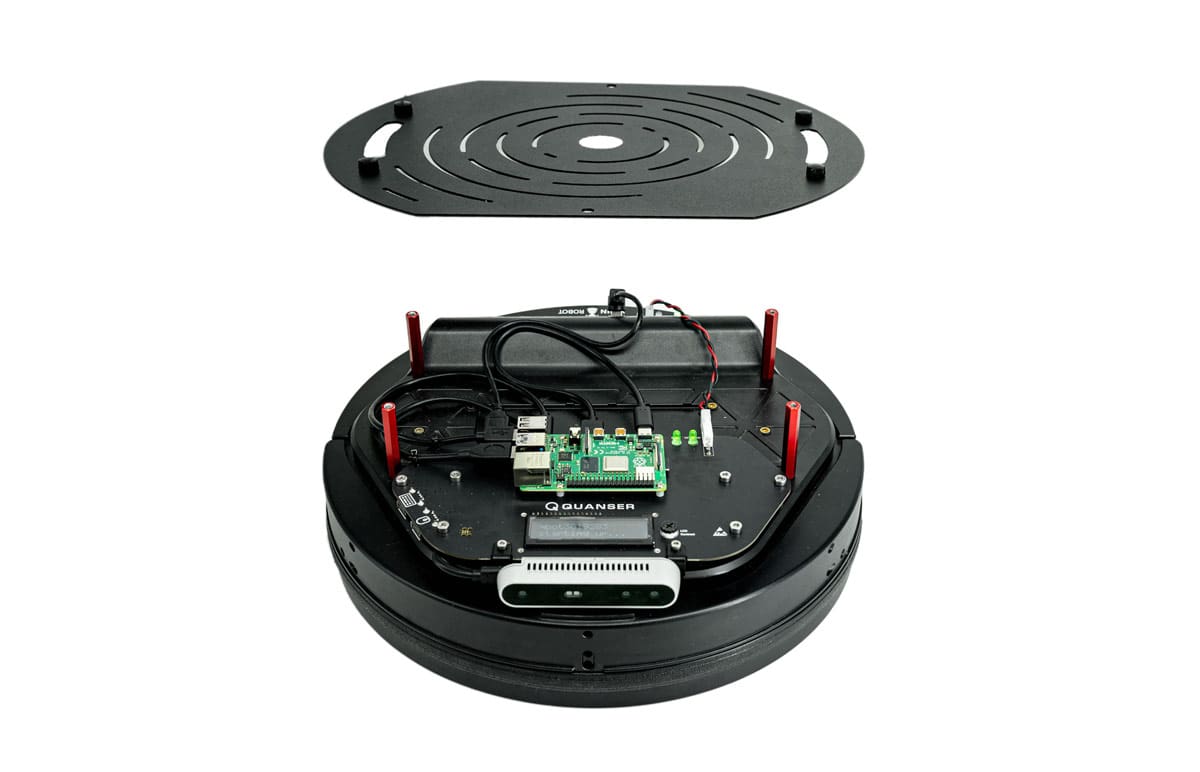

QBot 3
